zero bezel true flat surface 8" industrial touch panel PC

Name: zero bezel true flat surface 8quot industrial touch panel PC
Brand: ITD/OEM
Price: 1 USD

Wholesale zero bezel true flat surface 8" industrial touch panel PC from china suppliers

Brand Name : ITD/OEM

Model Number : ITD08PPCT5XJ

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 5-15 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm

Housing Material : Steel Chassis, aluminum front bezel

Color : Black or Silver

Housing Type : Panel/Embedded Mount, VESA Mounting

MTBF : 50000Hours

Operating Temperature : -10~60℃(-20~70℃ optional)

Operating Humidity : 10%-90% (Non Condensing)

24/7/365 Use : Supported

Touchscreen : Resistive, PCAP

Power input : DC 12V

Resolution : 1280x800

Contact Now

zero bezel true flat surface 8" industrial touch panel PC

Specifications:

Flat Bezel Industrial Panel PC
Model Name		ITD08PPCG1X**
IP Rating		IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® HD Graphics, Support 1080p		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		8”
Display Active Screen Size (cm)		162(H)×121.5(V)
Aspect Ratio		16:10
Physical Resolution		1280×800
Maximum Resolution Supported		1920×1200
Colors		16.7M
Brightness (cd/m²)		250
Contrast Ratio		500:1
View Angels		70/70/50/70
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		20.25W
Order Information
8”Panel Mount Panel PC with Resistive Touch, J1900		ITD08PPCT1XJ1
8”Panel Mount Panel PC with PCAP Touch, J1900		ITD08PPCT5XJ1
8”Panel Mount Panel PC with Tempered Glass, J1900		ITD08PPCG1XJ1
8”Panel Mount Panel PC with Resistive Touch, i5		ITD08PPCT1XI5
8”Panel Mount Panel PC with PCAP Touch, i5		ITD08PPCT5XI5
8”Panel Mount Panel PC with Tempered Glass, i5		ITD08PPCG1XI5

ITD industrial panel mount panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. Industrial panel mount panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.

BENEFITES

Exceptional quality and highly engineered industrial panel computer
High Performance Processor, Graphics, Memory and Power
Edge to edge design with true flat surface, easy to clean
Optional touchscreens like resistive, PCAP
All steel construction designed for harsh and industrial environments
Easy-to-install embedded/panel mounting with clamps
Robust design with aluminum NEMA 4/ IP65 front panel
Flexible, reliable, and ruggedized for open platform HMI/SCADA

Product Display:

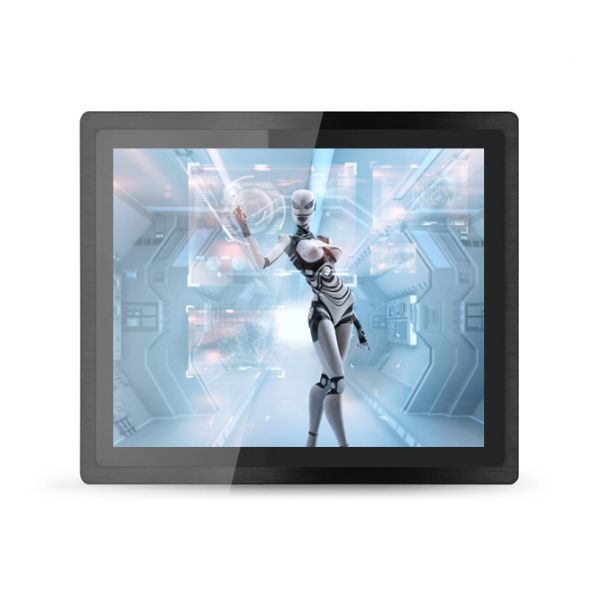

zero bezel true flat surface 8" industrial touch panel PC
