HMI Comfort Touch Panel PC 15.6" Screen Diagonal 1920x1080 Physical Resolution

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITD156PPCT5**

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 unit per month

Delivery Time : 15-20 working days

Packaging Details : Foam,gift box,master carton,wooden case,pallet

CPU : Intel J1900/i3/i5/i7/RK3288

Screen Diagonal : 15.6"

Display active screen size : 344.16(W) × 193.59(H)mm

Physical Resolution : 1920X1080

Compliance : CE,FCC,ROHS

Optional functions : Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS

Price : TBA

Contact Now

15.6" muli-touch screen HMI comfort touch panel PC built-in RIFD,NFC,Fingerprint,QR rearder,web camera,GPS


ITD 15.6” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance Intel® Core™ Dual/Quad Core Processor i3/i5/i7, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, combined with a NFC or RFID reader with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD 15.6” multi-touch HMI comfort panel PC specifically suited for various smart access control systems.

Specifications

Panel Cell Type/Glass Surface TFT
Size 15.6”
Aspect Ratio 16:9
Active Area 344.16(W) × 193.59(H)mm
Pixel Pitch 0.17925 × 0.17925mm
Native Resolution 1920 x 1080
Colors 16.7M
Brightness 300cd/㎡
Contrast 500:1
Response Time 14ms
Viewing Angle(Typical) 160/160
Light Source LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System CPU Intel® Core i3/i5/i7 Processor
BIOS Award BIOS 4/8Mbit SPI Flash ROM
Chipset Intel Valley View SSA‐Cunit
Memory 1 x SO-DIMM, DDR3 1333MHz Memory, 4GB, Max.16GB
Graphic Chipset CPU integrated graphics HD and support 1080p
Storage 64G SSD
LAN 1 x 10/100/1000Mbps Ethernet
Input / Output Serial Ports 1 x COM
USB Ports 4 X USB
VGA Port 1 x VGA
HDMI Port 1x HDMI Output
Audio Card

with Realtek ALC662

Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN

Power Input Voltage DC 12V
Operation/Power Saving 58W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%(Non Condensing)
OS Support Windows 7/ Windows XP/ Windows 8/ Windows 10/Linux
Order Information 15.6” PCAP Touch Panel PC i3/i5/i7, NFC Reader /ITD156PPCT5KI*-NFC
15.6” Non Touch Panel PC i3/i5/i7, NFC Reader /ITD156PPCG1KI*-NFC
15.6” PCAP Touch Panel PC i3/i5/7, RFID Reader /ITD156PPCT5KI*-RFID
15.6” Non Touch Panel PC i3/i5/i7, RFID Reader /ITD156PPCG1KI*-RFID

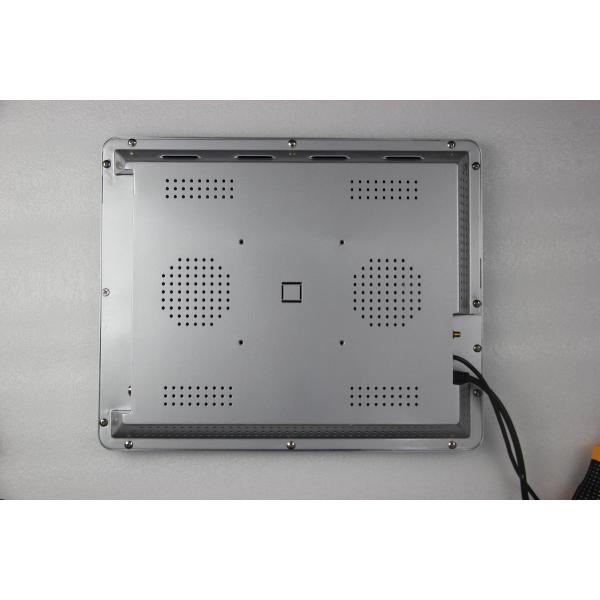

Product Display


HMI Comfort Touch Panel PC 15.6" Screen Diagonal 1920x1080 Physical Resolution



HMI Comfort Touch Panel PC 15.6" Screen Diagonal 1920x1080 Physical Resolution
HMI Comfort Touch Panel PC 15.6" Screen Diagonal 1920x1080 Physical Resolution


HMI Comfort Touch Panel PC 15.6" Screen Diagonal 1920x1080 Physical Resolution



Factory:

HMI Comfort Touch Panel PC 15.6" Screen Diagonal 1920x1080 Physical Resolution
