Aluminum Alloyed Embedded Panel PC 19 Inch Industrial 250cd/m2 1280X1024

Shenzhen ITD Display Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Aluminum Alloyed Embedded Panel PC 19 Inch Industrial 250cd/m2 1280X1024

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITD19PPCT5X**

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 unit per month

Delivery Time : 15-20 work days

Packaging Details : Foam,gift box,master carton,wooden case,pallet

CPU : Intel® Core™ Processor i5-7200U

Size : 19"

Active Area : 376.32(H) X 301.06(V)mm

Native Resolution : 1280X1024

Brightness : 250cd/m2

Viewing Angle : 85/85/85/85

Input Voltage : DC9-36V,DC12V

Price : TBA

Contact Now

Aluminum alloyed embedded 19 inch industrial touch screen panel pc panel mounted

Specs:

Panel Cell Type/Glass Surface TFT LCD
Size 19”
Aspect Ratio 4:3
Active Area 376.32(H) x 301.06(V)mmmm
Pixel Pitch 0.294 x 0.294mm
Native Resolution 1280 x 1024
Colors 262K
Brightness 250cd/㎡
Contrast 800:1
Response Time 25ms
Viewing Angle(Typical) 85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System CPU Intel® Core Quad Core i5-7200U 2.5GHz Fanless
BIOS AMI
Chipset Intel H110
Memory 2 x SO-DIMM, DDR4 2133/2400MHz Memory, 8GB, Max.32GB
Graphic Chipset Intel HD Graphics 620
Storage 2 x SATA3.0 1 x mSATA (SATA SSD)
LAN 2 x 10/100/1000Mbps Ethernet
Input / Output Serial Ports 1 x COM
USB Ports 4 X USB
VGA Port 1 x VGA
HDMI Port 1x HDMI Port
Audio Card

with Realtek ALC662

Line-Out /MIC IN

Power Input Voltage DC 9-36V
Operation/Power Saving 30W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90% (Non Condensing)
Anti-Vibration 5Hz-500Hz / 1Grms/3 Axis
Anti-Shock 15G, 15ms Duration

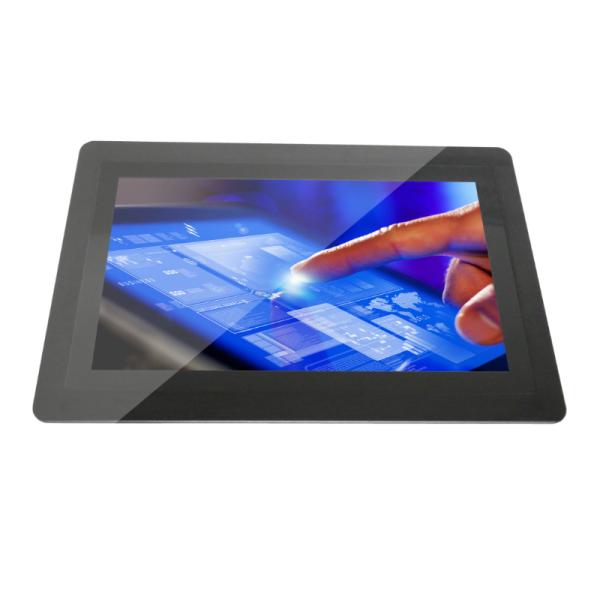

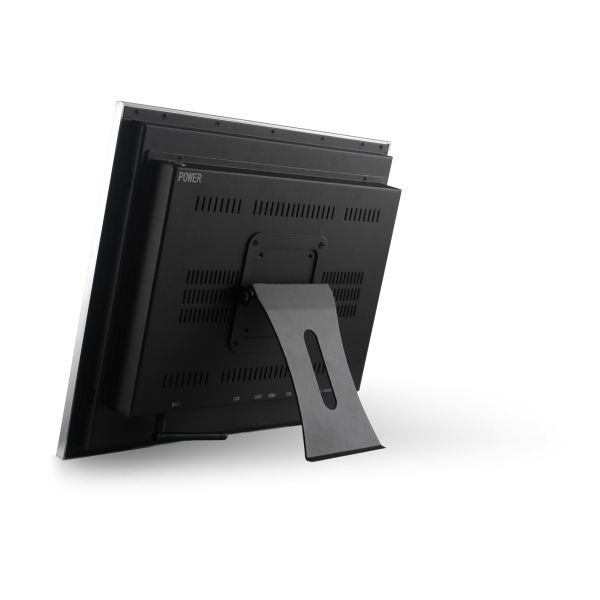

Image:

Aluminum Alloyed Embedded Panel PC 19 Inch Industrial 250cd/m2 1280X1024

Aluminum Alloyed Embedded Panel PC 19 Inch Industrial 250cd/m2 1280X1024

Aluminum Alloyed Embedded Panel PC 19 Inch Industrial 250cd/m2 1280X1024

Aluminum Alloyed Embedded Panel PC 19 Inch Industrial 250cd/m2 1280X1024

FEATURES

▪ Freescale ARM Cortex-A9 i.MX 6DualLite processor with Android 5.1 OS

▪ LTE/HSPA+, Wi-Fi, Bluetooth, and GPS connectivity

▪ Energy-efficient and fan-less HMI Systems

▪ Robust design with aluminum bezel NEMA 4/ IP65 front panel

▪ CAN bus interface with raw CAN, J1939, and OBD-II/ISO 15765 support


Aluminum Alloyed Embedded Panel PC 19 Inch Industrial 250cd/m2 1280X1024
