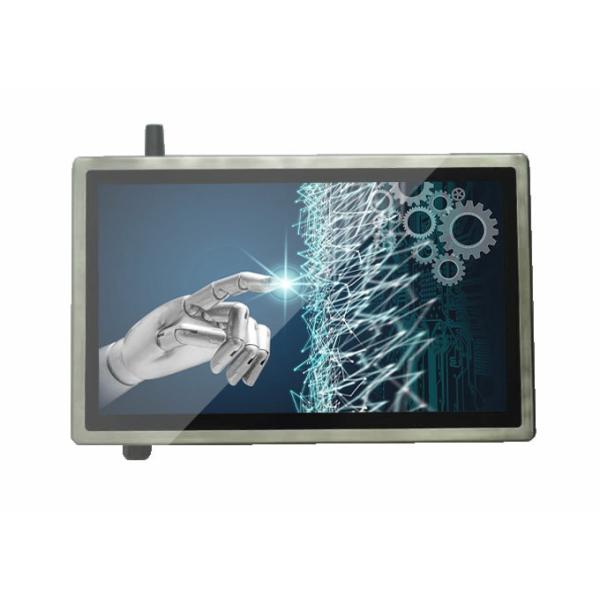

18.5" Industrial Rugged Panel PC Stainless Steel J6412 Elkhart Lake

Name: 185quot Industrial Rugged Panel PC Stainless Steel J6412 Elkhart Lake
Brand: ITD/OEM
Price: 1 USD

Wholesale 18.5" Industrial Rugged Panel PC Stainless Steel J6412 Elkhart Lake from china suppliers

Brand Name : ITD/OEM

Model Number : ITD185PPCT5IPSxx

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 unit per month

Delivery Time : a month

Packaging Details : Foam,gift box,master carton,wooden case,pallet

Price : TBA

CPU : Intel J6412 Elkhart Lake, Inte i3/i5/i7 optional

Material : Stainless steel housing 304, 316L

Screen Diagonal : 18.5"

Physical Resolution : 1366 x 768, 1920X1080 optional

IP rate : IP67, IP69K optional

Operating temp : -10 to 60℃, -20 to 70℃ optional

Touch screen : resistive/capacitive touch

OS : Windows 10, 11, Linux supported

TPM 2.0 : TPM 2.0 supported

Contact Now

18.5" Industrial Rugged Panel PC Stainless Steel J6412 Elkhart Lake

Waterproof Industrial Rugged Stainless Panel PC 18.5" J6412 Elkhart Lake

This full IP67 waterproof stainless steel panel PC with Intel J6412 Elkhart Lake is a rugged and durable industrial computer designed for use in harsh and demanding environments. The computer is encased in a fully-sealed stainless steel enclosure, which provides complete protection against dust, water, and other contaminants. With its IP67 rating, the panel PC is able to withstand exposure to extreme temperatures, shock, and vibration, making it suitable for use in a wide range of industrial and outdoor applications.

FEATURES

Robust and durable design: These panel PCs are designed to withstand harsh environments, making them suitable for use in industrial and outdoor applications.
Waterproof and dustproof: These panel PCs are rated IP65, IP66, IP67, or higher, which means they are protected from dust and can withstand being submerged in water.
High-performance computing: Waterproof stainless steel panel PCs have powerful processors, memory, and storage, which makes them ideal for running demanding applications.
Touchscreen display: These panel PCs feature high-quality touchscreen displays that are responsive and easy to use, even in wet or dirty conditions.
Multiple connectivity options: These panel PCs offer a range of connectivity options, including USB, Ethernet, and serial ports, which make them compatible with a variety of devices and peripherals.
Fanless design: The fanless design of these panel PCs makes them quiet and reliable, while also reducing the risk of dust and debris entering the system.
Long lifespan: Waterproof stainless steel panel PCs are designed to have a long lifespan and require minimal maintenance, which makes them a cost-effective solution for industrial and outdoor applications.

DISPLAY

Panel	Cell Type/Glass Surface	TFT
	Size/ Aspect Ratio	18.5”/16:9
	Active Area/ Pixel Pitch	412.6(H) x 233.2(V)mm/0.300× 0.300mm
	Native Resolution/ Colors	1366 x 768(1920 x 1080 optional)/16.7M
	Brightness/ Contrast	250cd/㎡/1000:1
	Response Time/ Viewing Angle(Typical)	14ms/85/85/80/80
	Light Source	LED Backlight with 50000Hours’Lifetime

SYSTEM

Item	Android Solution	X86 Solution 1	X86 Solution 2
CPU	ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)	Intel® Celeron J6412 2.0GHz,Elkhart Lake	Intel® Core i3/i5/i7
Chipset	RK3288	Intel Bay Trail SoC	Intel SoC Chipset
Memory	2GB; 4GB Optional	Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB	2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage	8GB: 16GB/32GB/64GB Optional	1 x SATA, 1 x mSATA, Default to 64GB SSD	1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics	Supports max. 4K resolution	Intel HD Graphics (By CPU)	Intel HD Graphics (By CPU)
Default Waterproof I/O	2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional	2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional	2 × USB, 1× RJ45, 1× DC12V. COM ports, HDMI Output, Audio, etc. optional
LAN	1 x 10/100/1000Mbps Ethernet	1 x 10/100/1000Mbps Ethernet	1 x 10/100/1000Mbps Ethernet
OS	Android 6.0 (Android 7.0 optional)	Windows 7/8/10, Linux	Windows 7/8/10, Linux

GENERAL

Power	Input Voltage	DC 12V 2.0
	Operation/Power Saving	25~45W
Environment Considerations	Operating Temperature	-10~60℃
	Storage Temperature	-20~70℃
Mounting	VESA Mount, Panel/Embedded Mount optional
Order Information	18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD18PPCG1IP*E2
	18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD18PPCT1IP*E2
	18.5” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD18PPCT5IP*E2
	18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD18PPCG1IP*J2
	18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD18PPCT1IP*J2
	18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD18PPCT5IP*J2
	18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD18PPCG1IP*I3
	18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD18PPCT1IP*I3
	18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD18PPCT5IP*I3
	18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD18PPCG1IP*I5
	18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD18PPCT1IP*I5
	18.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD18PPCT5IP*I5
